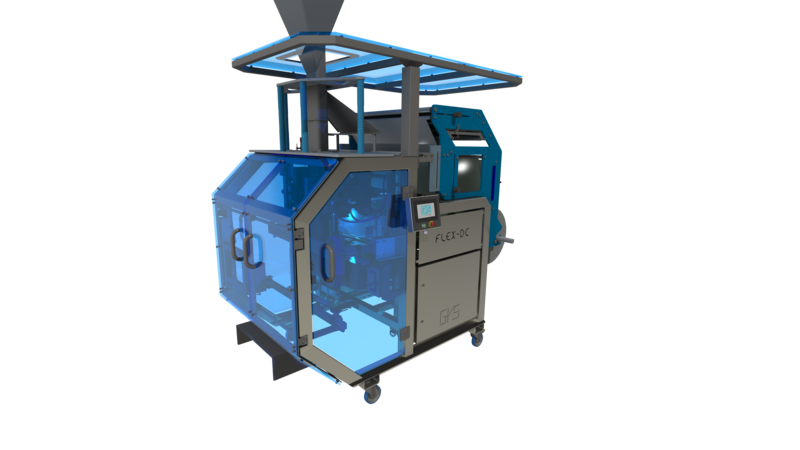

GKS FLEX-DC (Doy bag and Corner Seal)

Vertical form, fill and seal machine to produce, fill and close bags out of PP, laminated film from the roll. The machine is suitable for packing many types of food and non food products.
The Flex-DC has a hygienic design and is made of stainless steel. Together with the open construction this makes the machine very easy to clean. The machine is suitable for making Doy bags, pillow bags and corner seal bags. With a capacity of up to 45 bags per minute, the machine is widely applicable. The modular construction guarantees that each module can be exchanged within minutes. This creates a reduction in downtime and costs during maintenance work. Options and components can be retrofitted easily and quickly.

Machine is standard equipped with:
Stainless steel machine construction; open design
Machine safety according to CE regulations
Stainless steel frame with PMMA cover plate over the entire film lane
Allen Bradley PLC controls and components
Photocell for bag length detection with marker on film
End of film detection
Sliding doors with bearings for optimal access
Film cut and splice table
Servo driven vacuum film pull belts
Ergonomic film roll support with film tensioning system and pneumatic film brake
Lateral film adjustment by means of automatic spindle
Servo driven sealing system model heatseal for processing
PP and laminated film

Options: FLEX-DC
Heated pneumatic support plate for keeping
the bottom seal flat
Slide-, guide-plate under sealing jaws
Vibration unit for reducing product volume
Perforation unit, pneumatical with heating
unit and controls
Length seal cooling
Air cooling on horizontal sealing bars
Thermal transfer printer
Labelling unit
MAP
Easy opening

Technical specifications FLEX-DC
Bag width (Pillow) 350 mm
Bag width Doy (max) 285 x 80 x 5 mm
Bag width Quadro (max) 200 x 150 mm
Max. bag length unlimited mm
Max. bag length per sealing step 350 mm
Max. production speed 45 bags/min
Film thickness 25 – 120 μ
Core diameter 76 (3”) mm
Max. film width 750 mm
Max. outer diameter film roll 500 mm
Voltage 400V 50/60 Hz
Power consumption 1200 Watt
Air consumption (min. 6 bar) 600 ltr/min
All dimensions and specifications are indications based on standard set up. Final details depend on customer specifications
