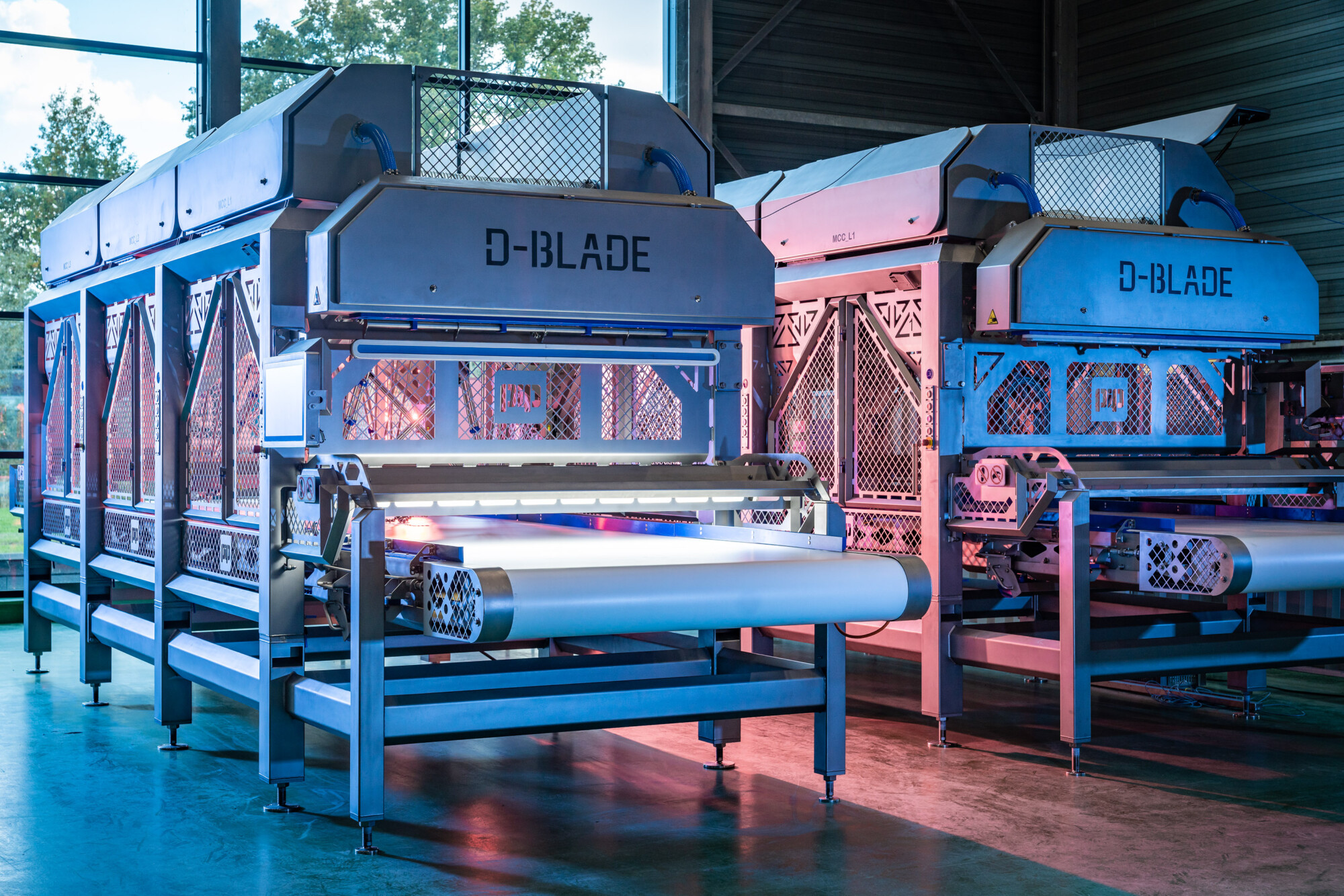

PIP Innovations D-Blade Robotic Cutting System

PIP Innovations is a Dutch technology company delivering new technologies to the potato, vegetable, and fruit processing industry. D-BLADE is designed to deliver hour after hour of high quality results in the harshest of environments and comes with very low operating and service costs. If you need to reduce your staffing levels, without compromising product quality, why not find out how D-BLADE can help?

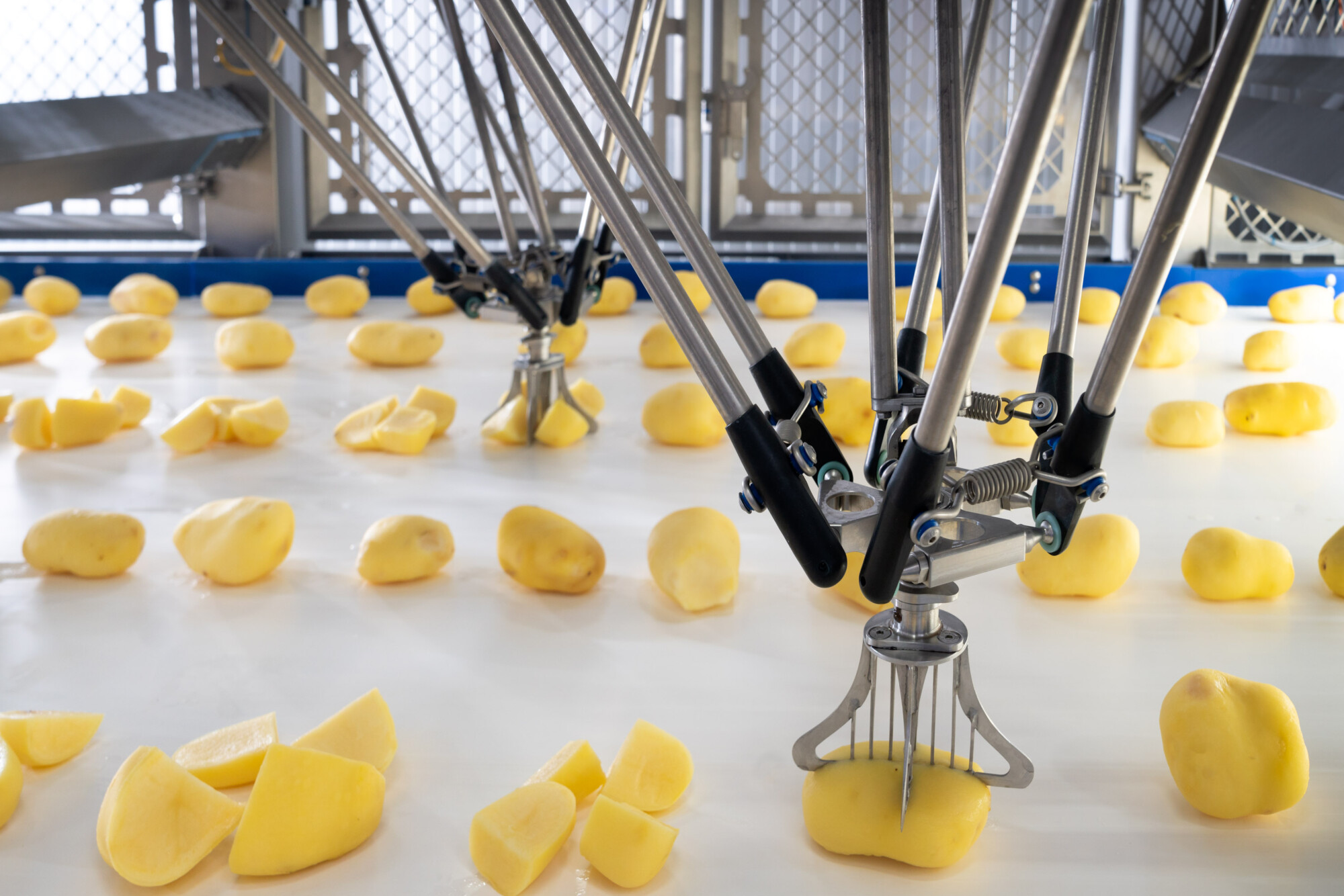

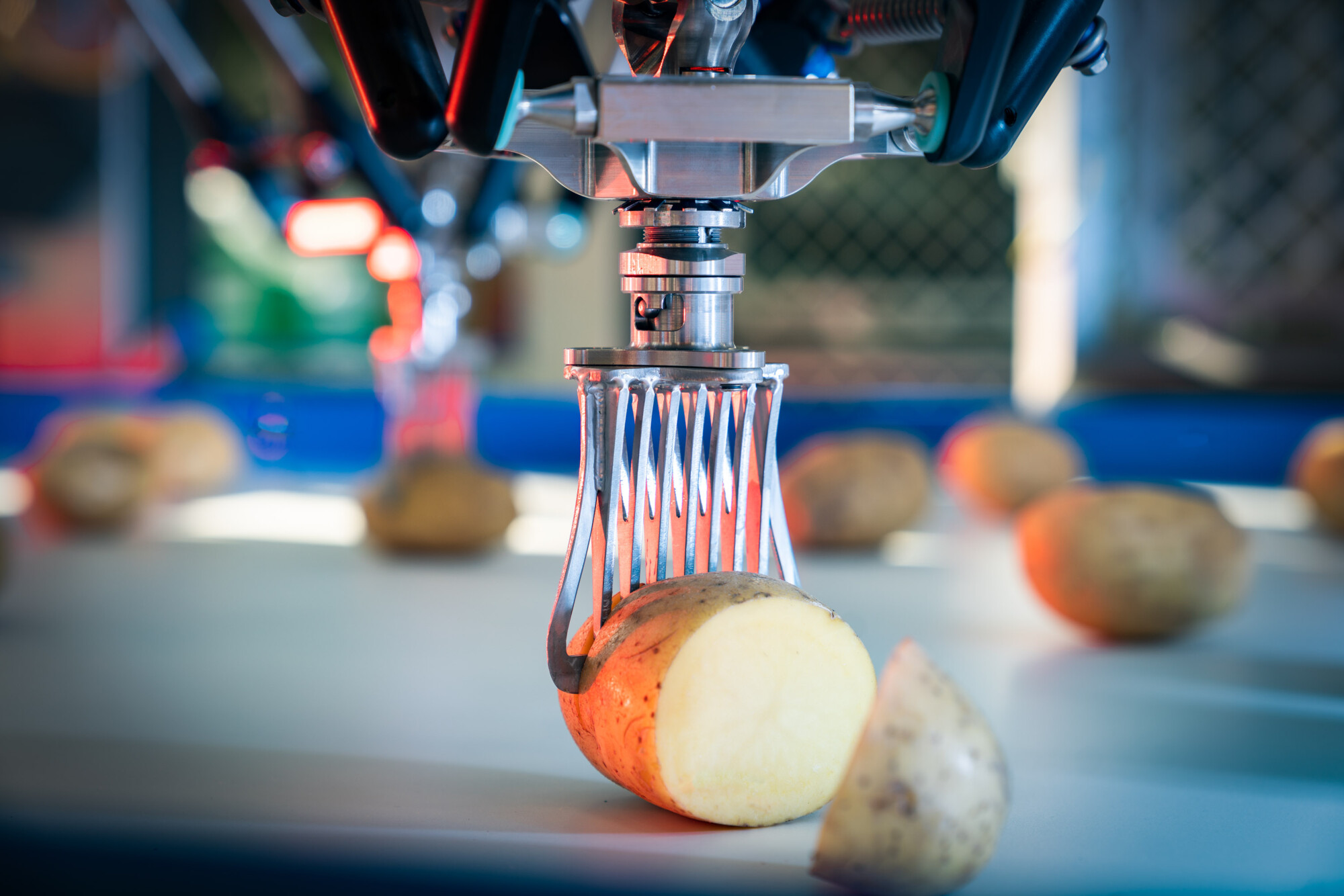

D-BLADE applications include Carrot top, tail and cutting to length, Potato halving, quartering and Hasselbacks, Strawberry calyx removal

ENQUIRE ONLINE01449 771 202
D-Blade specification

Factsheet D-Blade 6 header
• Assembled LxBxH (mm): 8028x 2260 x 3158
• Transport LxBxH (mm): 8028 x 2260 x 2451
• Weight: +/- 6000 Kg
• Supply capacity: 32/63A
• Voltage: 3 x 400V + N + PE
• Belt speed (mm/sec): 150 – 1000
• Air supply (when needed): 6 – 8 bar
• Clean with water, max 60 bar, 60°C
• Maintenance: slide bearings robot arms every 6 months
• 3-5 cuts per second per robot
