GKS FLEX-L

Standard machine construction:

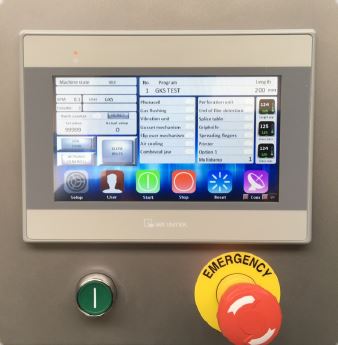

Stainless steel construction; hygienic design. Machine safety according to CE regulations. Allen Bradley PLC with 7” full colour touchscreen and 99 programs can be created and stored. Photocell for bag length detection with pre-printed film. End of film detection. Pneumatic opening and closing of the servo driven film pull belts. Low power and air consumption. Cover plate over the entire machine. Machine in mobile frame.

Servo configuration: Servo driven film transport
Netpack configuration: Handgrip sealing bars with air cooling. Block bottom /gusset mechanism. Film splice table

Options standard machine + Servo configuration FLEX-L
QC-Seal system (LDPE, PP, + Laminated films)
Air cooling on sealing system
Euroloch/handgrip sealing system
Block bottom/gusset mechanism
Lateral film guiding system
Film splice table
Vibration unit
Bag support system
Connection for gas flushing (MAP)
Vacuum system
Perforation system
Printing and labelling systems
Various weighing and dosing systems
Customer specific options on request
Options Netpack configuration:
Lateral film guiding system
Vibration unit
Bag support system
Printing and labelling systems
Various weighing and dosing systems
Customer specific options on request

Options Netpack configuration:
Lateral film guiding system
Vibration unit
Bag support system
Printing and labelling systems
Various weighing and dosing systems
Customer specific options on request

Technical specifications standard machine: FLEX-L
Voltage 230 V 50/60Hz
Power during production 1.200 Watt
Air consumption 150 ltr/min
Bag width (flat) 75 – 350 mm
Max. bag length onbeperkt mm
Max. bag length per sealing step 480 mm
Max. production speed 50 perp/min
Film thickness 25 – 120 μ
Core diameter 76 (3”) mm
Max. film width 750 mm
Max. outer diameter film roll 320 mm
Air consumption 6 bar, 150 l/min

Technical specifications Servo configuration:
Power during production 1.500 Watt
Air consumption 6 bar, 100 l/min
Max. production speed 70 per/min

Technical specifications Netpack configuration:
Max. production speed 40 perp/min
Core diameter 152 (6”) mm
Max. outer diameter film roll 600 mm
Air consumption 6 bar. 200 l/min
