Versatility and capacity in one machine – Standard cutting machine for lettuce, vegetables, fruit, meat and poultry up to 4 t/h
For industrial cutting of salad, vegetable, fine herbs, fruit and many more products.

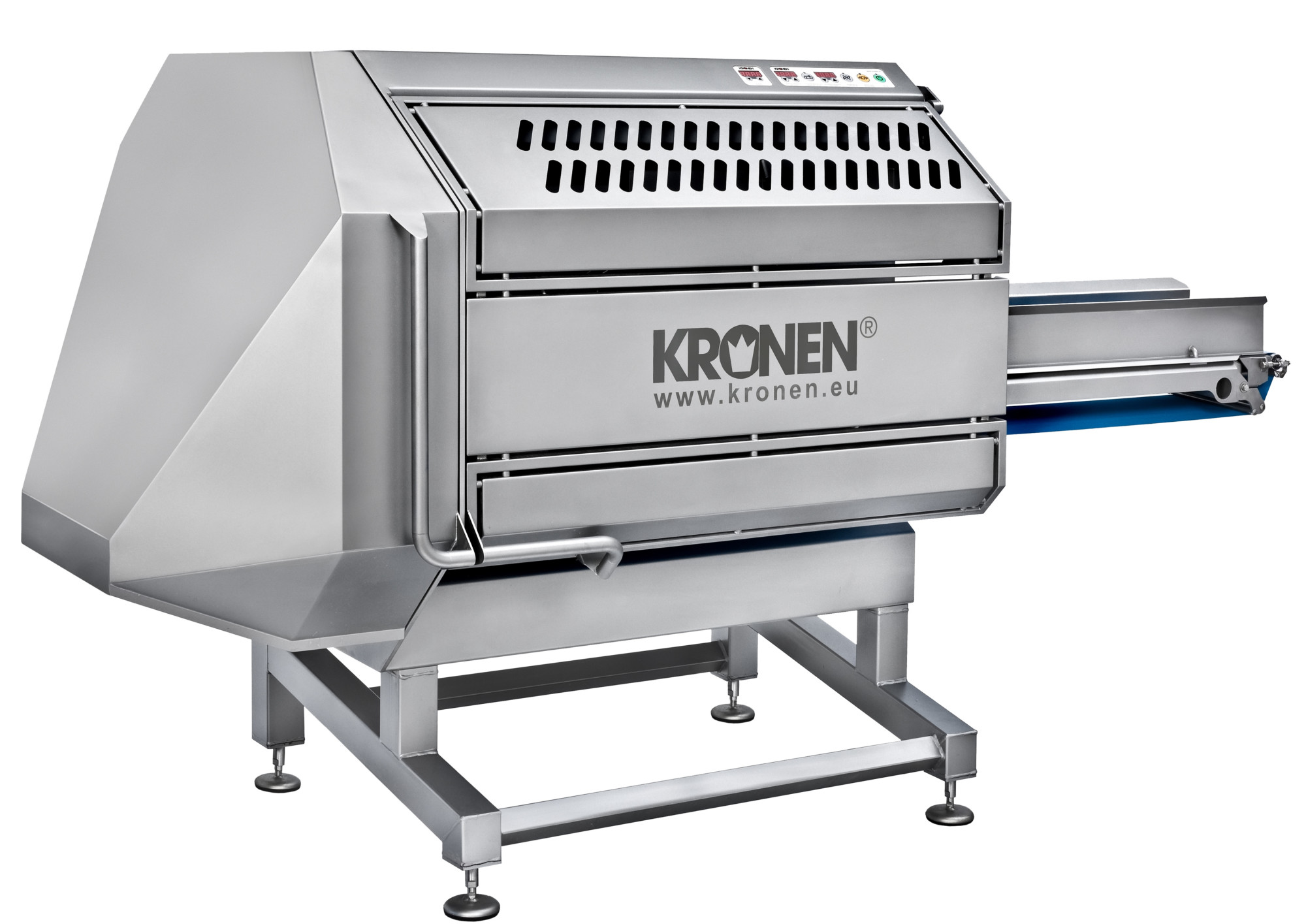

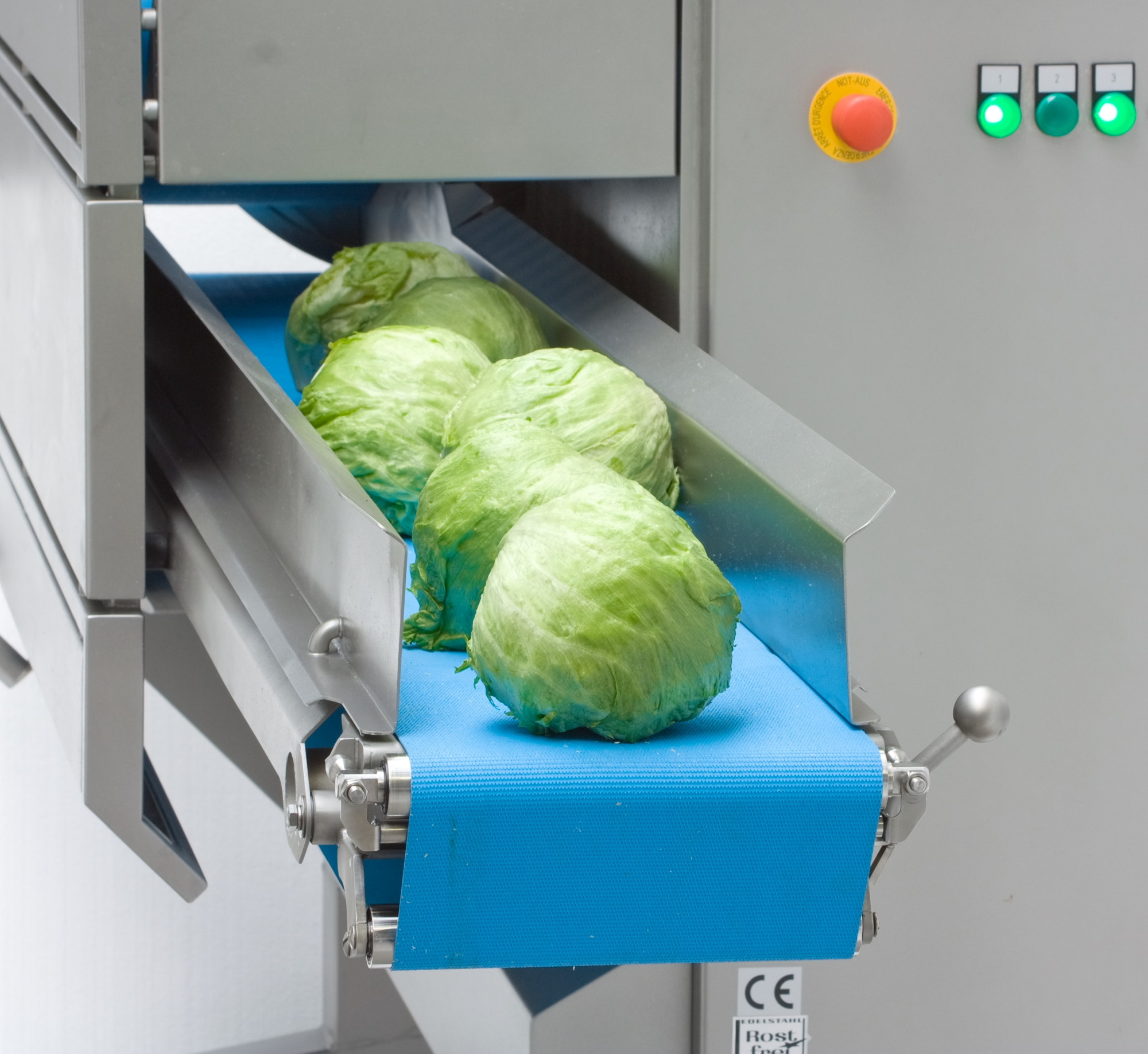

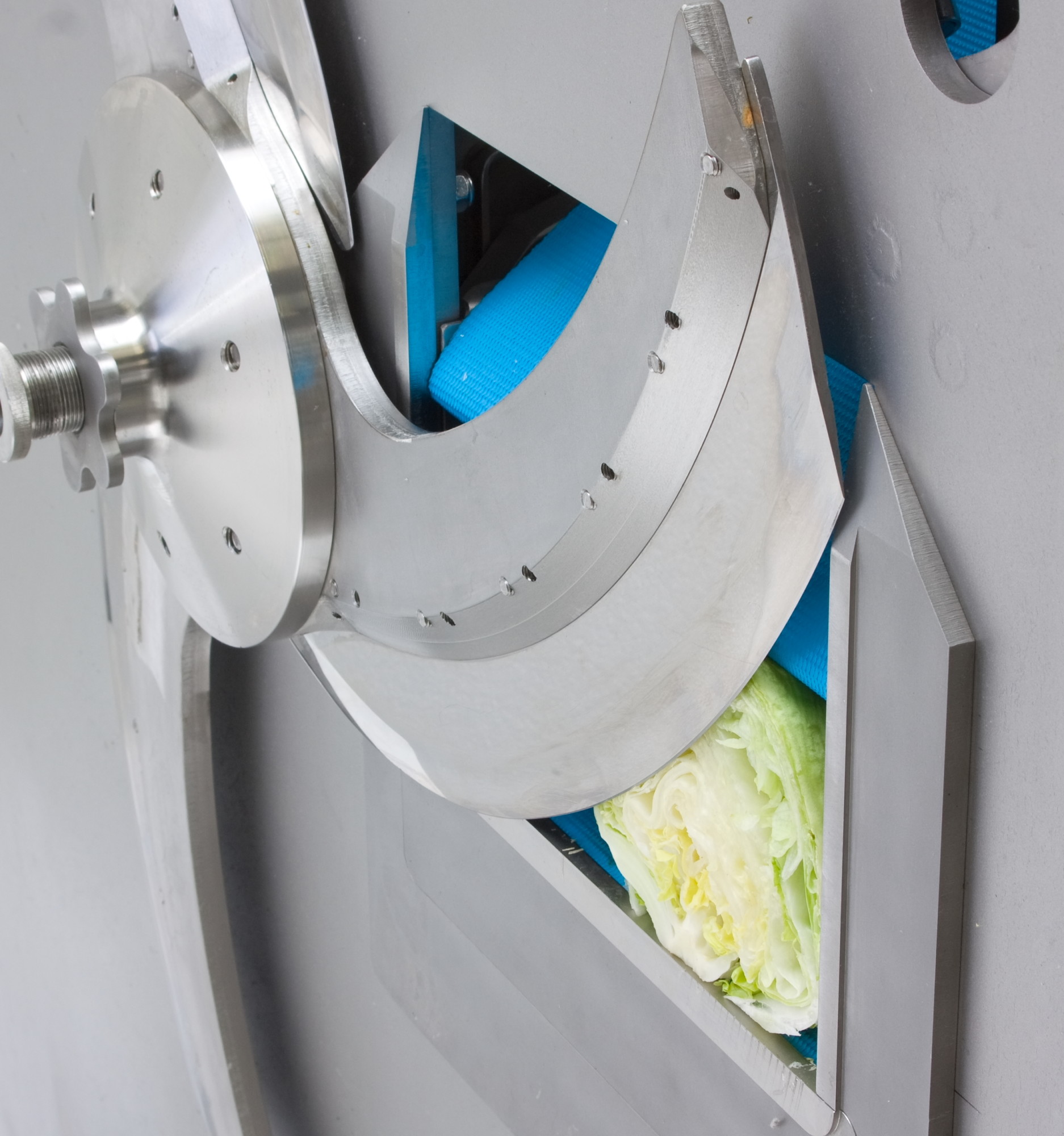

The GS 20 belt cutting machine is equipped with a conveyor belt 250 mm wide and a product down-holder to apply gentle pressure for product control. This key feature holds and controls the product until point of cutting. Individually definable programs can be stored and selected by the simple use of control buttons and features digital in-motion cutting size adjustment from 1 to 50 mm using a knife with 3 blades. The GS 20 feeding belt has been designed to convey whole heads of lettuce or cabbage.
The GS 20 builds upon the strengths of all established KRONEN GS belt cutting machines. The knife cover allows for an optimized product outfeed and thus a gentle product handling. To ensure consistent cutting quality, the GS 20 includes as little wear parts as possible. Indicator lights show the status of the safety sensors. The locking system, combined with the belt cover, ensures safety in the area of the knife. As with all KRONEN machines, its excellent hygiene qualities are a major advantage: Inclined surfaces, stainless steel shaft seals and the elimination of screws in the cutting chamber door area, a seamless knife edge, etc. contribute to the improved performance of the GS 20 belt cutting machine.
The solid industrial machine is completely made of stainless steel. It has been conceived caring specially about simple maintenance, easy and efficient cleaning and is, therefore, ideally suited for professional applications.
|infeed / feeding height||905 mm|
|discharge / outfeed height||470 mm|
|total power||3 kW|
|voltage||1~230 V N/PE|
special belt cutters
|belt width||250 mm|
|height of downholder||210 mm|
|conveyor speed||2,6 – 19 m/min|
|knife rotation speed||130 – 590 r/min|
|theoretical cutting thickness||1-50 mm|
