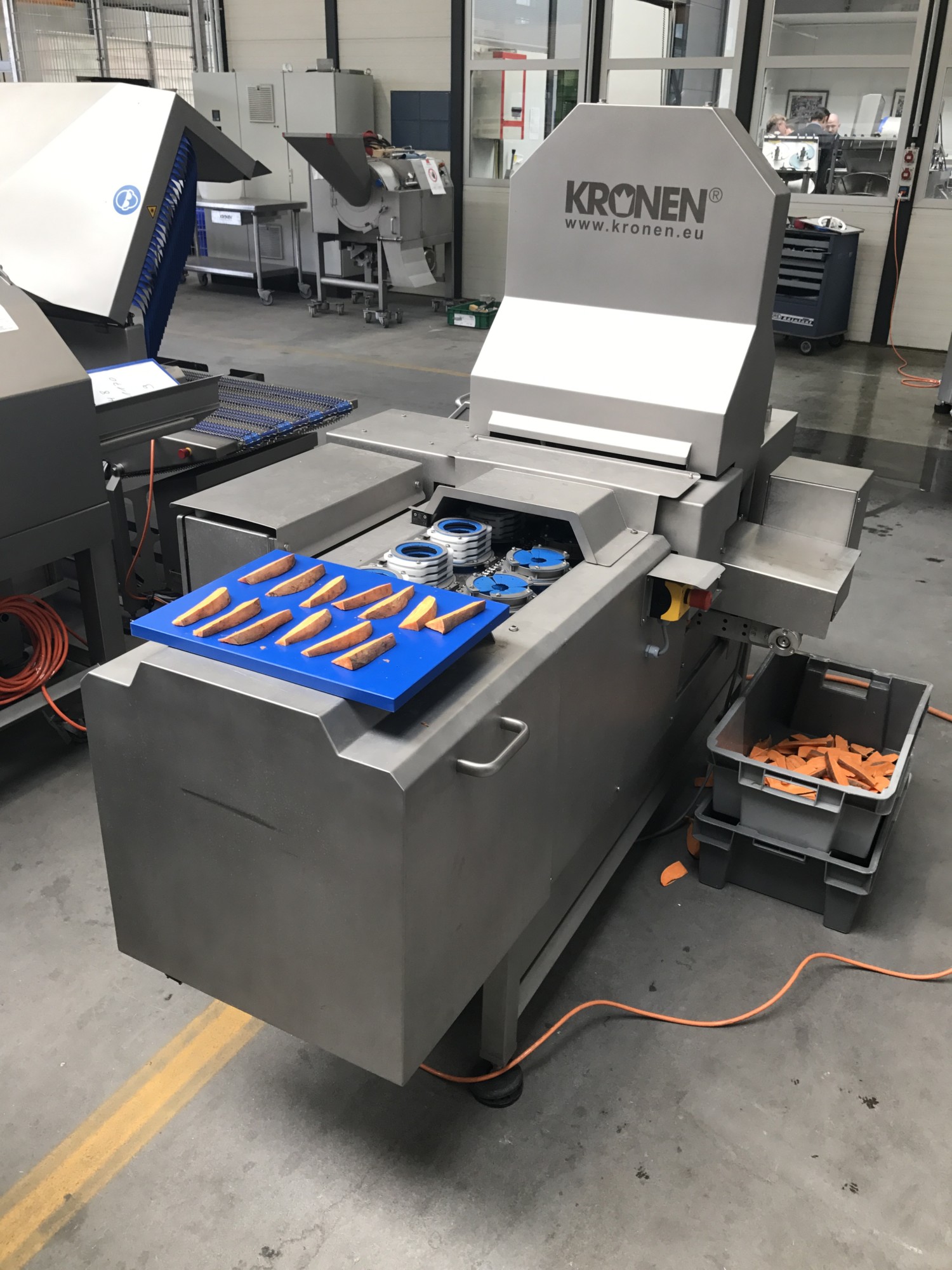

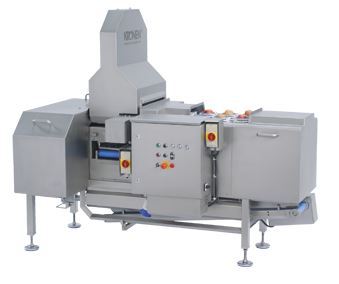

Tona Rapid S145 – 3D – XL

Automatic slicing, coring and wedging machines

The Tona range of machines are designed to cut fruit and vegetables into slices, wedges, segments, sticks and other various shapes – according to the customers’ requirements. The machines are made of stainless steel and process upto 3600 items per hour, on the Tona Rapid S145 in its standard form. There is an optional speed upgrade kit which will increase throughput to 4600 per hour.

Hourly capacity of the 3D version is 3600 (speed upgrade not possible) and the XL version is 2400

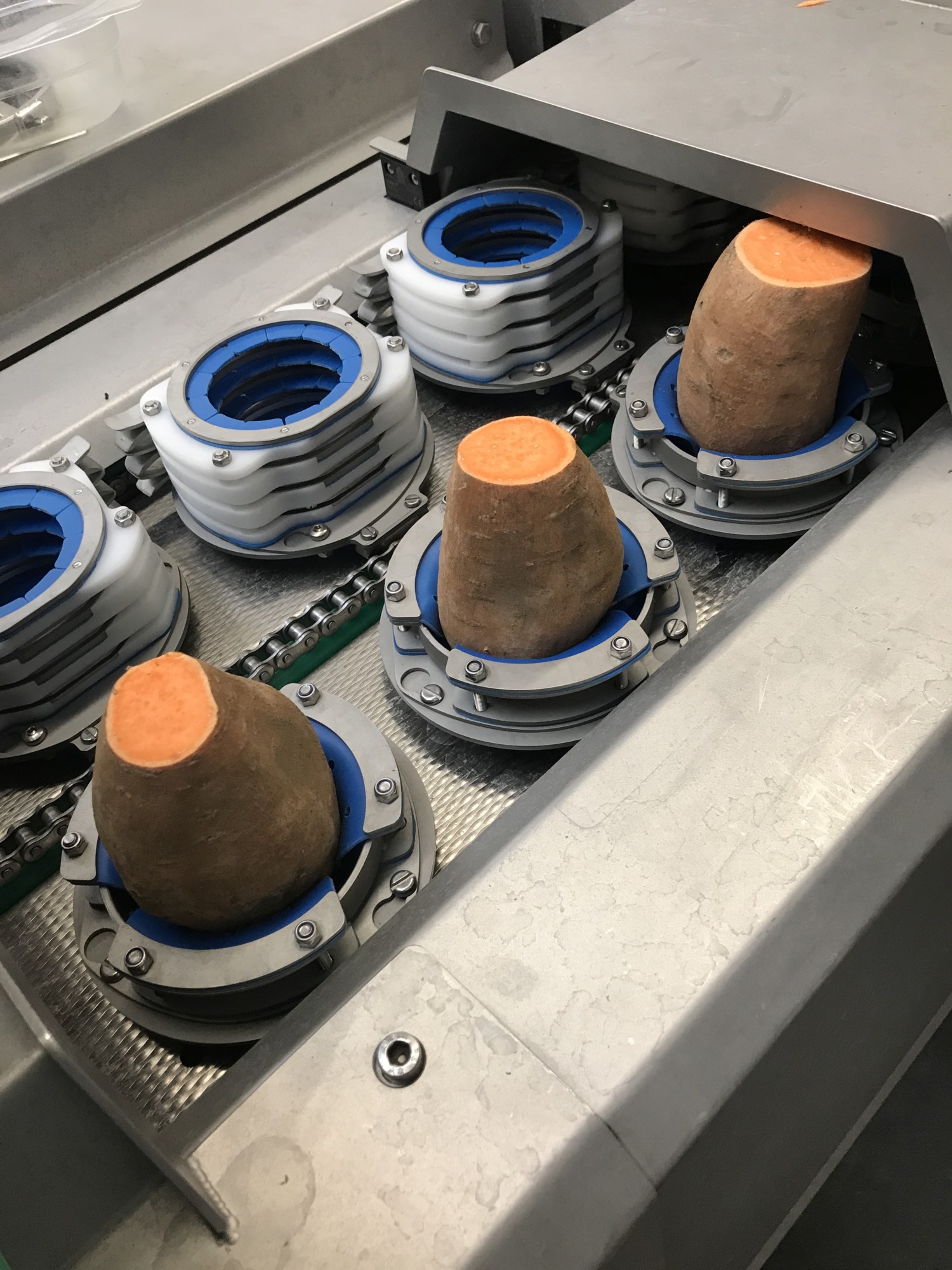

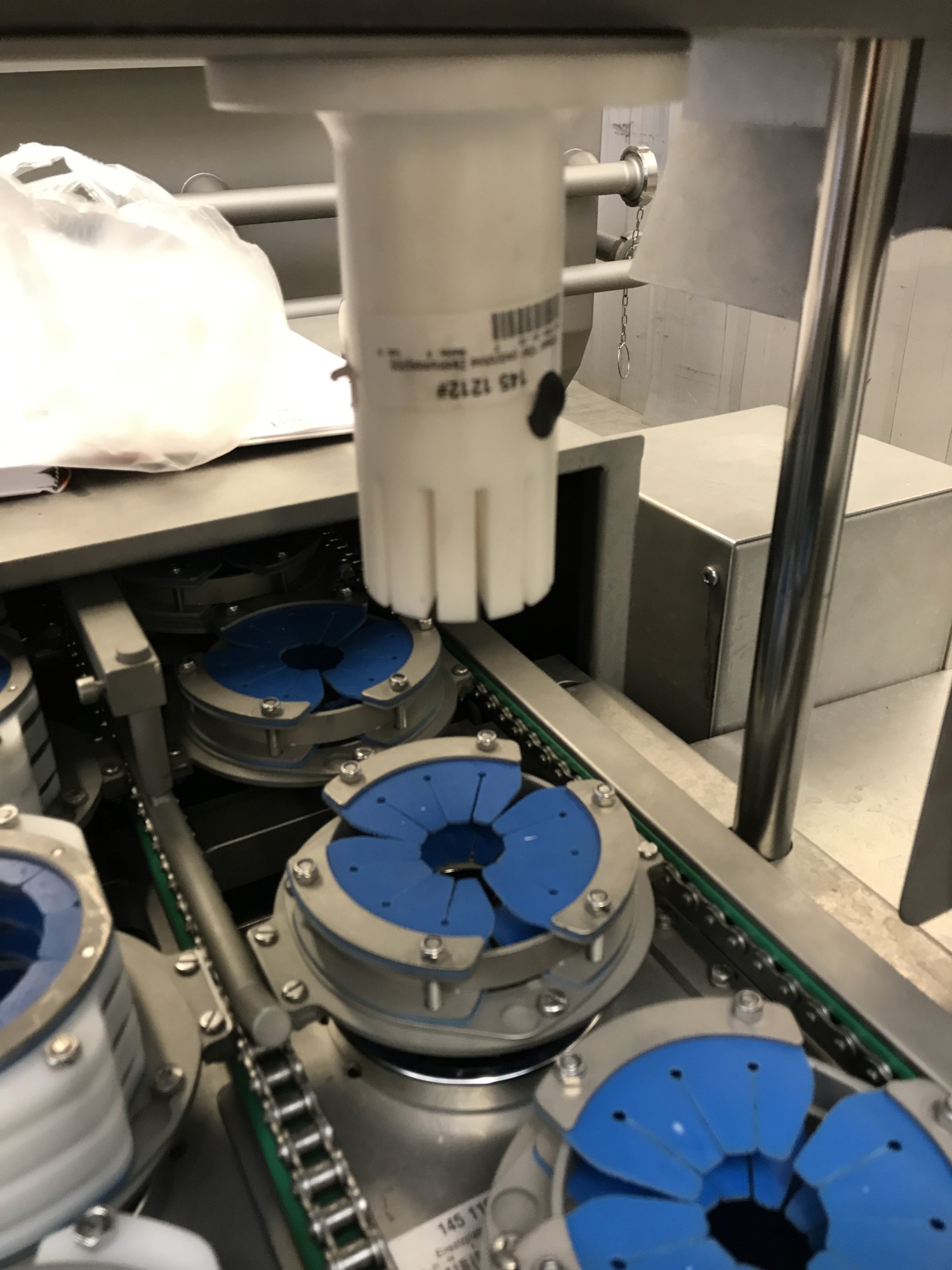

A continuous variable speed feed system ensures high capacity and high quality results. The produce is inserted manually, kept in place by the purpose made flexible product holders and pushed through the cutting devices. The cut produce falls directly into a container or onto a conveyor belt. Options available include a system to separate apple wedges and core after cutting to save labour

A wide range of attachments are also available. Precise and high performance cutting – the Tona rapid machines are the ultimate in slicing efficiency.

The Tona Rapid 3D precuts the products horizontally (1, 2 or 3 cuts) before they get cut vertically by the main cutting device. This results in a three dimensional cut, producing small chunks from apples, half slices from lemon and many more.

The Tona Rapid XL has been designed to handle large fruits and vegetables such as pineapple, mango, eggplant, pepper, onion, etc. into slices, segments or sticks.



ENQUIRE ONLINE01449 771 202
Tona Rapid specification

Tona Rapid S145

Voltage: 3×400 V+N+E

Air pressure: 6 bar

Motor: adjustable switch gear

Feed speed: adjustable

Material: stainless steel and food grade plastics

Capacity: up to 1800 strokes per hour up to 3600 items per hour

Dimensions:1910 x 945 x 1655 mm (LxWxH)

Tona Rapid 3D

Voltage: 3×400 V+N+E

Air pressure: 6 bar

Motor: adjustable switch gear

Feed speed: adjustable

Material: stainless steel and food grade plastics

Capacity: up to 1800 strokes per hour up to 3600 items per hour

Dimensions: 1905 x 921 x 1676 mm (LxWxH)

Tona Rapid XL

Voltage: 3×400 V+N+E

Air pressure: 6 bar

Motor: adjustable switch gear

Feed speed: adjustable

Material: stainless steel and food grade plastics

Capacity: up to 1200 strokes per hour up to 2400 items per hour

Dimensions: 3288 x 1164 x 2185 mm (LxWxH)
